Date: April 16, 2025

Motivation for MCC method ？

For fingerprint recognition algorithm, it can be seen from the content of courseware, It can be divided into global minutiae based approach and local minutiae based approach. the principle of the global based approach is applya global transformation thatallows to maximize the number of resulting paired minutiae. However, the problem is that it ignores the local information and is sensitive to the transformation of fingerprint images, so the robustness is not strong.

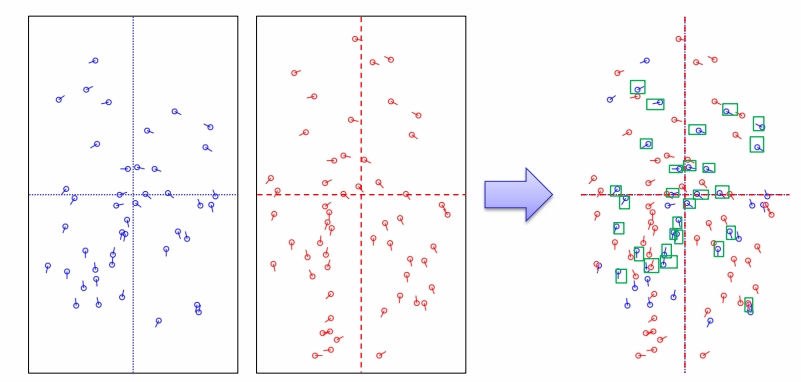

The principle of the global minutiae-based method is shown below:

Figure 1: global minutiae-based method

Therefore, the local minutiae-based approach is generally adopted, such as Nearest-neighbor-based local structures and Fixed-radius-based local structures. For Nearest-neighbor-based local structures, the schematic diagram is as follows:

Figure 2: The principle of the k Nearest neighbor based local structures

Its disadvantages are:

  • possibility of exchanging nearest neighbor minutiae due to missing or false minutiae.

For Fixed-radius-based local structures, the schematic diagram is as follows:

Figure 3: The principle of the Fixed radius based local structures

Its disadvantages include:

  • the descriptor length is variable and depends on the local minutiae density leading to a more complex comparison.
  • minutiae close to the border can be mismatched because of different local distortion or location inaccuracy.

Therefore, the method of Minutiae cylinder code is introduced in the courseware. Its advantages are as follows:

  • fixed radius structure;
  • fixed-length descriptors;
  • tolerates local distortion and small feature extraction errors;
  • bit-oriented coding;
  • fast and simple local structure comparison phase;

Reference

Therefore, the MCC method is currently used for fingerprint recognition.

the general algorithm process for MCC method

The process of understanding MCC fingerprint matching method from courseware can be abstracted as the following steps

step step description
step1 A discrete cylinder is constructed by selecting the radius and quantizing the transverse and longitudinal values
step2 The values on the cylinder are calculated according to the spatial location of other minutiae in the radius domain
step3 The values in each layer of the cylinder are determined according to the directional difference and Gaussian distribution between other minutiae in the radius field and the current minutiae
step4 Convert cylinders into bit vectors based on the unit step function
step5 Performing fractions on two cylinders

These steps are just a personal abstract understanding, and the formula for calculating the specific score regarding step 5 is as follows:

\[\gamma(a,b) = 1 - \frac{\|C_a \oplus C_b\|}{\|C_a\| + \|C_b\|}\]

conclusion

Based on the MCC method, the local features of fingerprints can be better extracted, including the spatial location and orientation information of other minutiae within its radius R, so as to better match the features, and tolarate the aberration of the image and the overall transformation, which is more robust.
